50 - POWER TRAIN

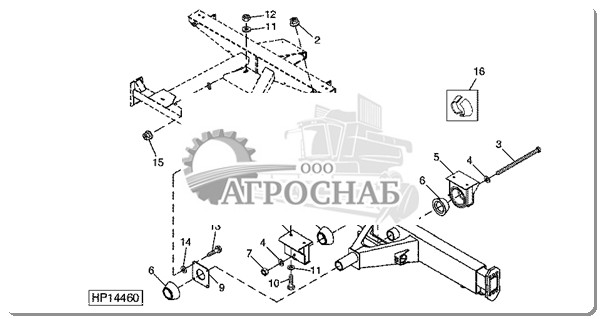

Fixed Rear Axle

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7786 Screw 4 X X M10 X 30
2 14M7296 Flange Nut 4 X X M10
3 Z55241 Bolt 1 X X
4 24M7241 Washer 2 X X 17 X 34 X 4 mm
5 HXE16630 Rear Axle 2 X X SUB FOR AH162786
6 Z46513 Bushing 3 X X
7 A31869 Lock Nut 1 X X
8 AH230713 Axle 1 X X (SUB FOR AH152344 OR AH212323)
9 H169287 Plate 1 X X
10 19M9027 Cap Screw 4 X X M16 X 240
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 24M7241 Washer 8 X X 17 X 34 X 4 mm
12 A31869 Lock Nut 4 X X
13 19M7897 Screw 4 X X M8 X 35
14 28H3392 Washer 4 X X 0.364" X 0.540" X 5/16"
15 H137328 Lock Nut 4 X X M8
16 AH216083 Tube Kit 1 X X (A)

Adjustable Rear Axle

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7786 Screw 4 X X M10 X 30
2 14M7296 Flange Nut 4 X X M10
3 Z55241 Bolt 1 X X
4 24M7241 Washer 2 X X 17 X 34 X 4 mm
5 AH162786 Bracket 2 X X
6 Z46513 Bushing 3 X X
7 14M7300 Flange Nut AR X X M20
8 AH210321 Axle 1 X X (SUB FOR AH164250 OR AH211638)
9 H169287 Plate 1 X X
10 A31869 Lock Nut 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 19M7921 Cap Screw AR X X M20 X 150
12 24M7242 Washer AR X X 21.400 X 42 X 5 mm
13 H134549 Plate 1 X X
14A AH207127 Axle 2 - 705927
AH207127 Axle 2 - 705753
14B H223132 Extension 2 705928 -
H223132 Extension 2 705754 -
15 19M9027 Cap Screw 4 X X M16 X 240
16 24M7241 Washer 8 X X 17 X 34 X 4 mm
17 A31869 Lock Nut 4 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 AH216083 Tube Kit 1 X X (A)

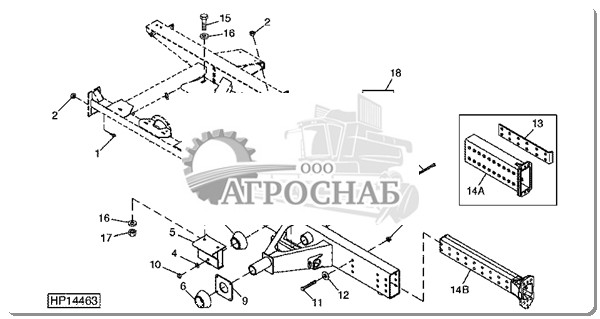

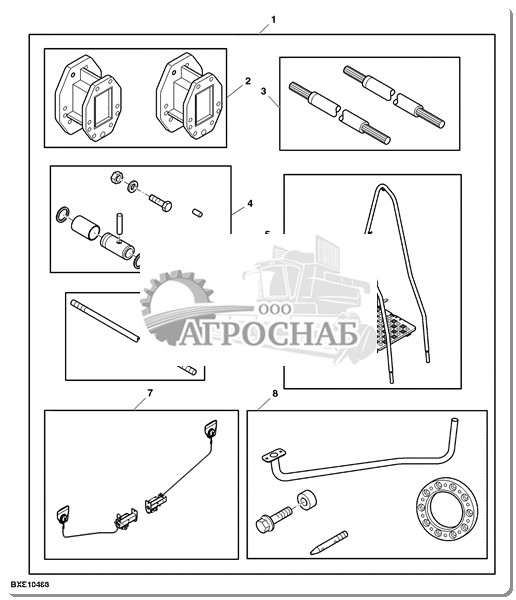

Axle Spacer, Rear Tail Lights, Handrails and Extensions, Attachment

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BXE10468 Spacer 1 SUB FOR BH92105
2 HXE71479 Spacer 2 SUB FOR H168166
3 H165663 Shaft 2 SUB FOR BH84595
4 BH81747 Hardware Kit 1
5 BH81585 Ladder Kit 1
6 H133635 Rod 1 SUB FOR BH84591
7 BXE10004 Light Kit 1
8 BH92272 Assembly Line Parts 1

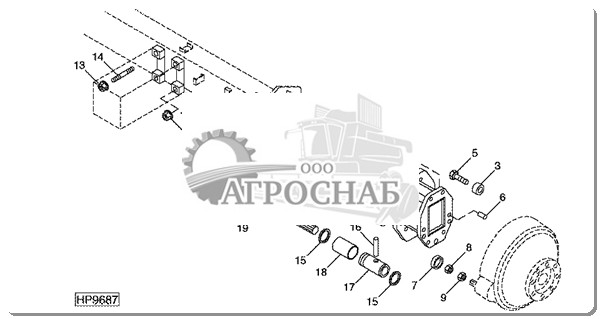

Axle Spacers

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H168165 Spacer 2 X X 165 MM
HXE71480 Spacer 2 X X 300 MM, SUB FOR H168744
HXE71479 Spacer 2 X X 400 MM, SUB FOR H168166
H168745 Spacer 2 X X 454 MM
2 14M7278 Nut 12 X X M24
3 H163561 Spacer 12 X X
4 19M8288 Cap Screw 12 X X M24 X 90
5 19M7889 Cap Screw 12 X X M24 X 80
6 H87691 Bushing 8 X X
7 H130287 Spacer 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
8 H130288 Nut 2 X X
9 14M7431 Nut 2 X X M30
10 H133635 Rod 1 X X
11 24M7243 Washer 12 X X 25.400 X 50 X 6 mm
12 H107504 Screw 2 X X
13 14M7291 Flange Nut 4 X X M16
14 42M7028 Stud 2 X X
15 H133229 Snap Ring 4 X X
16 H131754 Pin 2 X X
17 H133231 Splined Coupling 2 X X Z=23
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
HXE30611 Splined Coupling 2 X X Z=18, SUB FOR H165510
18 H134444 Sleeve 2 X X
19 H165661 Shaft 2 X X 165 MM
H165662 Shaft 2 X X 300 MM
H165663 Shaft 2 X X 400 MM
H165664 Shaft 2 X X 454 MM
H165665 Shaft 2 X X RH
H165666 Shaft 2 X X LH

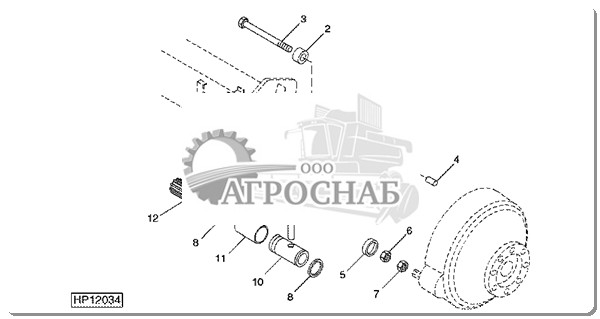

Axle Spacers, 105MM

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H227642 Spacer 2 X X (SUB FOR AH170484)
2 24M7243 Washer 12 X X 25.400 X 50 X 6 mm
3 19M7782 Cap Screw 12 X X M24 X 180
4 H87691 Bushing 8 X X
5 H130287 Spacer 2 X X
6 H130288 Nut 2 X X
7 14M7431 Nut 2 X X M30
8 H133229 Snap Ring 4 X X
9 H131754 Pin 2 X X
10 HXE30611 Splined Coupling 2 X X SUB FOR H165510
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H134444 Sleeve 2 X X
12 H176465 Shaft 2 X X

Drive Wheels

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H138607 Rod 1 X X
2 H210201 Screw 10 X X
H212608 Screw 10 X X (USE WITH H208150 ) (SUB FOR H138606)
3 H134114 Spacer 10 X X
4 AH232255 Wheel 1 X X (30.5X32), (SUB FOR AH154848)
AH223587 Wheel 1 X X (35.5X32), (SUB FOR AH127656)
AH232256 Wheel 1 X X (SUB FOR AH168656)(800/70R38)
5 AT25226 Tire Valve Stem 1 X X
6 H208150 Bushing 1 X X

High Flotation Drive Wheels

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH147544 Flange 1 X X
2 H105822 Ring 1 X X
3 H111500 O-Ring 1 X X
4 H138607 Rod 1 X X
5 H210201 Screw 10 X X
6 H134114 Spacer 10 X X
7 AH147546 Wheel 1 X X (32X44)
8 AT36212 Tire Valve Stem 1 X X
.. BH84477 Complete Goods/Ship. Bundle 1 X X 76X50-32

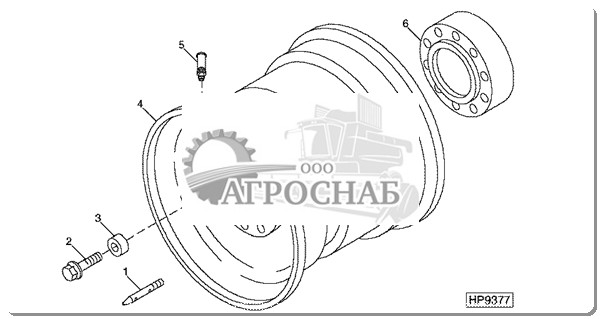

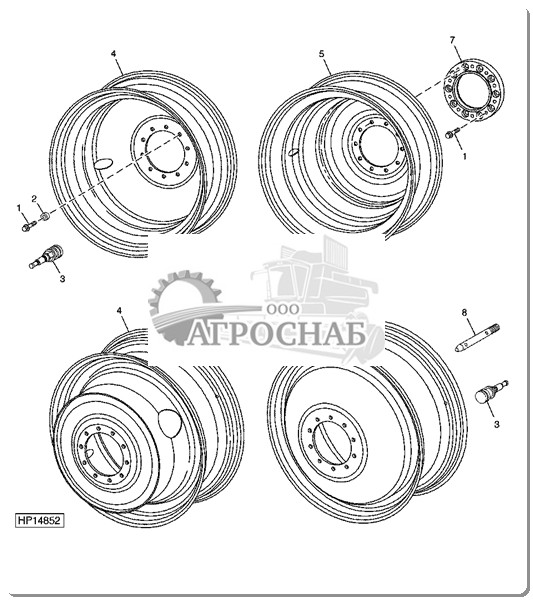

Wide-Spaced Dual Wheels

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H210201 Screw 20 X X
2 H134114 Spacer 10 X X
3 AT25226 Tire Valve Stem 1 X X
4 AH160832 Wheel 1 X X (18.4X42)
5 AH150345 Wheel 1 X X (18.4X42)
AH150346 Wheel 1 X X (20.8X42)
AH163171 Wheel 1 X X (20.8X38), (520/85R38)
6 AH130626 Wheel 1 X X (18.4X42)
AH145348 Wheel 1 X X (20.8X42)
AH163172 Wheel 1 X X (20.8X38)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
7 H157698 Spacer 1 X X (A)
H157698 Spacer 1 X X (B)
8 H138607 Rod 1 X X
.. BH81539 Complete Goods/Ship. Bundle 1 X X WHEEL BOLTS (DUAL WHEELS)

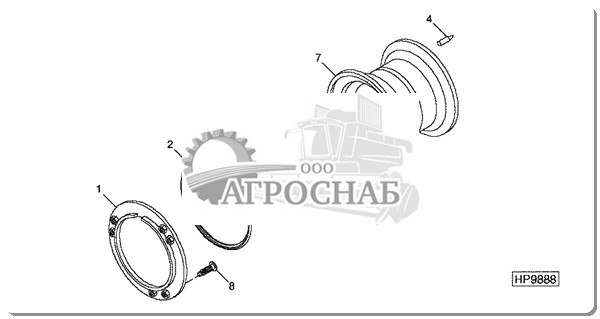

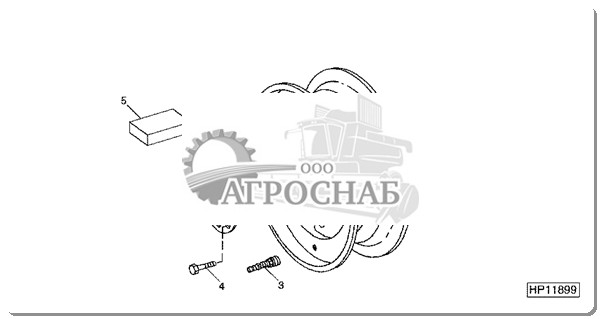

Rear Wheels

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H84375 Ring 1 X X
2 AH205129 Wheel 1 X X (26X14)
AH205131 Wheel 1 X X (26X16)
AH205187 Wheel 1 X X (28X26)
AH227712 Wheel 1 X X (600/65R28), (SUB FOR AH170137)
AH232760 Wheel 1 X X (A) (SUB FOR AH214777)
3 AT25226 Tire Valve Stem 1 X X
4 H168476 Screw 8 X X
5 H151739 Reinforcement 1 X X

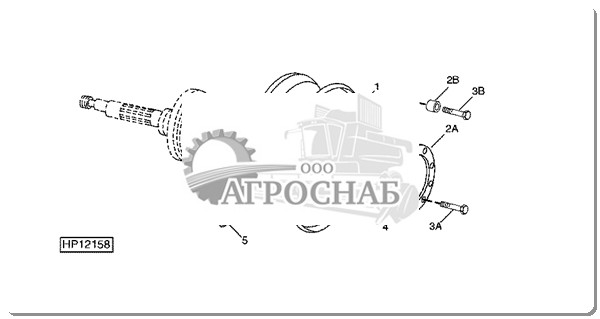

Rear Wheels (4-Wheel Drive)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH232760 Wheel 1 X X (B) (SUB FOR AH138809 OR AH214777)
AH168107 Wheel 1 X X (A) (16.9X26)
AH168109 Wheel 1 X X (A) (18.4X26)
AH214778 Wheel 1 X X (A) (18.4X30), (SUB FOR AH169100)
AH202466 Wheel 1 X X (A) (28X26)
AH170138 Wheel 1 X X (600/65R28)
2A H84375 Ring 2 X X
2B H134114 Spacer 8 X X (A)
3A H168476 Screw 8 X X
3B H210201 Screw 8 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
4 AT25226 Tire Valve Stem 1 X X
5 AH86866 Plug 1 X X

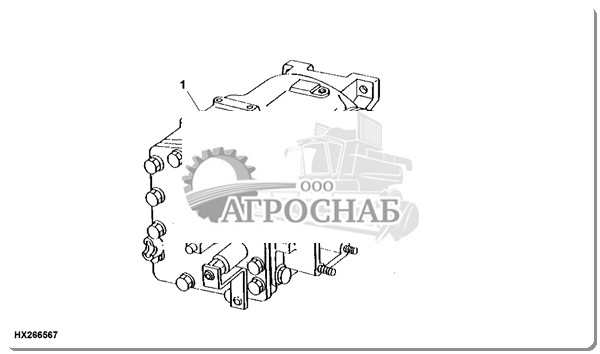

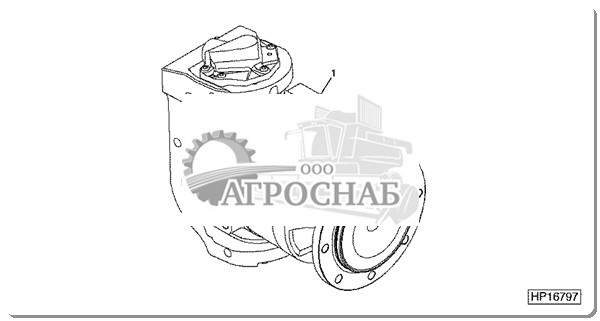

Transmission

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH202673 Transmission 1 X X

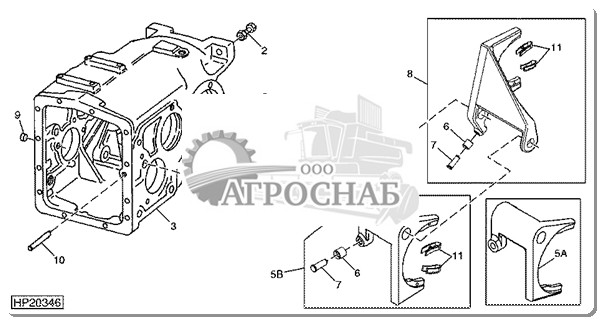

Transmission and Shifter Forks

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H107504 Screw 2 X X M16 X 70
19M7910 Screw 2 X X (A) M16 X 55
14M7291 Flange Nut 2 X X M16
2 42M7028 Stud 2 X X
14M7291 Flange Nut 2 X X M16
3 ...... Housing 1 X X (ORDER AH140410)
4 H146640 Rail 1 X X
5A H135112 Shifter 1 X X (SUB DE19870, THIS APPLICATION)
5B DE19870 Shifter 1 X X (ALSO ORDER CE18505)
6 R26207 Roller 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
7 H76152 Pin Fastener 2 X X
8 DE19509 Shifter 1 X X (SUB FOR DE19179)
9 N102039 Plug 1 X X
10 T76836 Pin 1 X X
11 L113217 Clip 2 X X

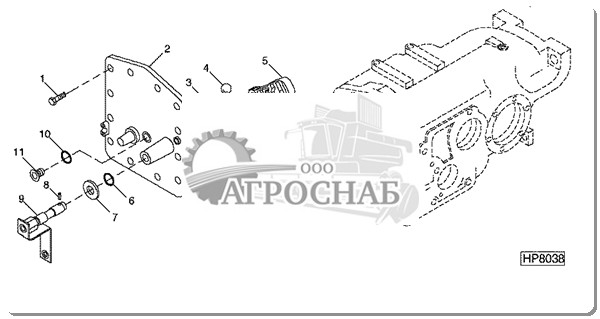

TRANSMISSION AND DIFFERENTIAL HOUSING COVER, AND SHIFTER CAM

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7786 Screw 12 X X M10 X 30
2 N199920 Cover 1 X X
3 T27888 Spring 1 X X
4 N105745 Ball 1 X X (SUB FOR R1818R)
5 H167375 Cam 1 X X
6 R71144 O-Ring 1 X X
7 H75700 Washer 1 X X
8 CE18374 Spring Pin 1 X X
9 AH128267 Arm 1 X X
10 R26375 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 R33138 Fitting 1 X X

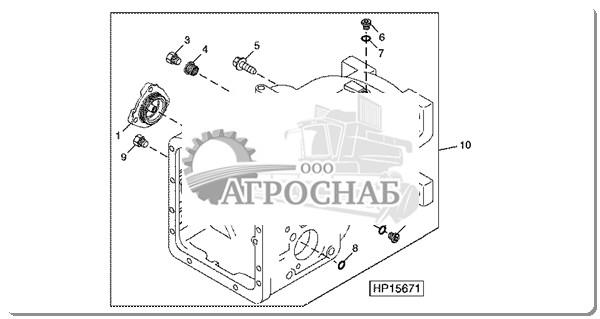

Three Speed Transmission Service Kit

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 CE18201 Housing 1 X X
2 ...... Housing 1 X X
3 T12083 Plug 1 X X
4 N196062 Bushing 1 X X
5 19M7784 Screw 1 X X M10 X 20
6 R33138 Fitting 2 X X
7 R26375 O-Ring 2 X X
8 T77857 O-Ring 3 X X
9 15H585 Pipe Plug 1 X X 3/4"
10 AH140410 Transmission Kit 1 X X

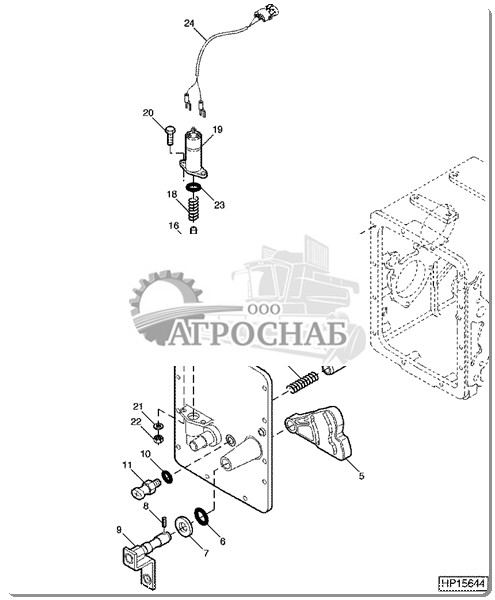

Transmission and Differential Housing Cover, and Shifter Cam (20 KM/H Transmission)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7786 Screw 12 X M10 X 30
2 Z13206 Cover 1 X
3 T27888 Spring 1 X
4 N105745 Ball 1 X (SUB FOR R1818R)
5 H167375 Cam 1 X
6 R71144 O-Ring 1 X
7 H75700 Washer 1 X
8 CE18374 Spring Pin 1 X
9 AH128267 Arm 1 X (INCL A31871)
10 51M7042 O-Ring 1 X 13.300 X 2.200 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 RE46534 Switch 1 X (A)
12 Z70299 Bushing 1 X
13 21M5631 Screw 1 X M6 X 45
14 34M7071 Spring Pin 1 X 10 X 35 mm
15 Z70300 Screw 1 X
16 Z69965 Plunger 1 X
17 Z52951 Washer 1 X
18 Z70691 Compression Spring 1 X
19 AZ55775 Solenoid 1 X
20 19M7077 Cap Screw 2 X M6 X 20
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 12M7133 Lock Washer 2 X 6 mm
22 14M7272 Nut 2 X M6
23 R26906 O-Ring 1 X
24 AH235381 Wiring Harness 1 X (SUB FOR AH208968)

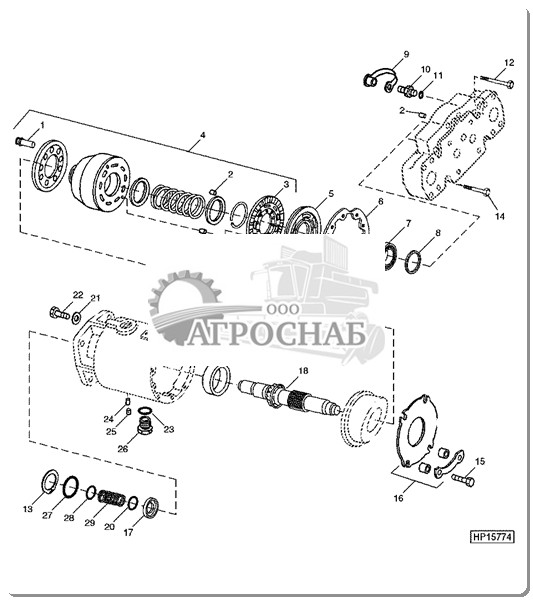

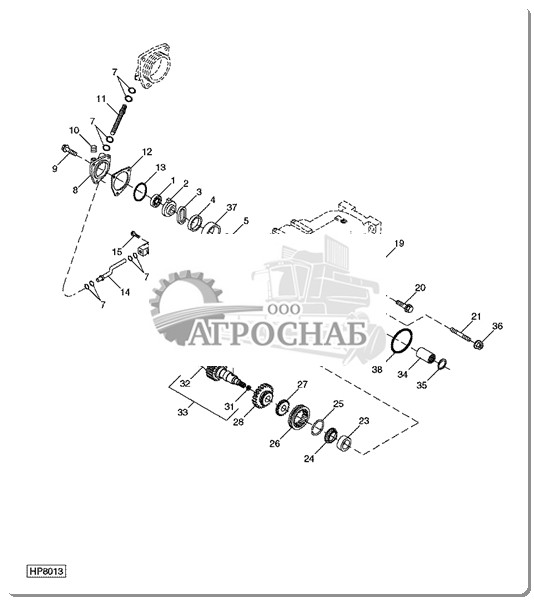

Transmission Input Shaft, Gears, Lube Pump and Bearings

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH128528 Rotor 1 X X
2 H82234 Plate 1 X X
3 H82232 Washer 1 X X
4 H82233 Bushing 1 X X
5 JD8257 Bearing Cup 1 X X
6 AR94761 Bearing Cone 1 X X
7 R394R O-Ring 8 X X
8 H142030 Housing 1 X X
9 19M7786 Screw 3 X X M10 X 30
10 15H638 Pipe Plug 1 X X 1/8"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H131296 Oil Tube 1 X X
12 H132892 Shim AR X X 0.076 (.003 )
H132893 Shim AR X X 0.127 (.005")
H132894 Shim AR X X 0.508 (.02")
13 PM38655 Sealant 1 X X (SUB FOR TY6304)
14 H131297 Oil Tube 1 X X
15 19M8162 Screw 1 X X M10 X 40
16 AH125228 Fitting 1 X X
17 R495R O-Ring 2 X X
18 AH121580 Screen 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 AH20868 Breather 1 X X
20 19M7844 Screw 4 X X M16 X 45
21 42M7029 Stud 4 X X
22 H133165 Bracket 1 X X
23 JD8237 Bearing Cup 1 X X
24 JD10182 Bearing Cone 1 X X
25 P43969 Snap Ring 1 X X
26 H129564 Shift Collar 1 X X (A) (USE WITH H135112)
CE18505 Bushing 1 X X (B) (USE WITH DE19870)
27 H129565 Shift Collar 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 H176278 Gear 1 X X Z=34
29 26M4228 Shaft Key 1 X X 8 X 28 mm
30 H75358 Dowel Pin 1 X X
31 H110539 Orifice 1 X X
32 ...... Pinion 1 X X (ORDER AH131861)
33 AH131861 Pinion Shaft 1 X X
34 H129525 Splined Coupling 1 X X
35 M41029 Snap Ring 2 X X
36 14M7299 Flange Nut 4 X X M12
37 H142031 Sleeve 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
38 R63308 O-Ring 1 X X

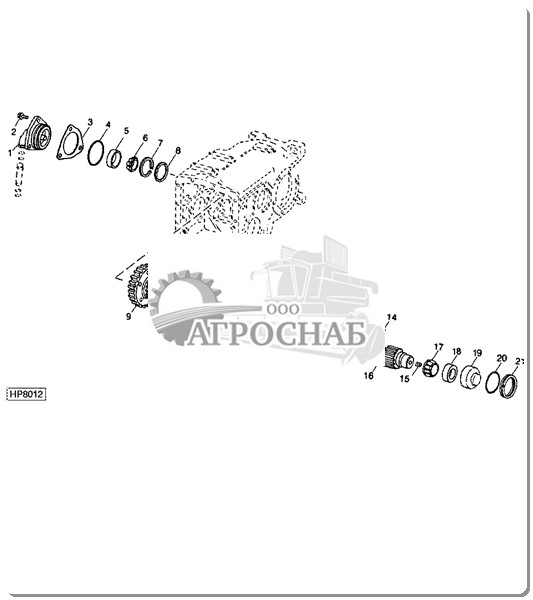

Transmission Pinion Shaft, Gears and Bearings

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 CE18201 Housing 1 X X
2 19M7786 Screw 3 X X M10 X 30
3 H132892 Shim AR X X 0.076MM
H132893 Shim AR X X 0.127
H132894 Shim AR X X 0.508
4 U10776 O-Ring 1 X X
5 JD8267 Bearing Cup 1 X X
6 JD8979 Bearing Cone 1 X X
7 R26265 Snap Ring 4 X X
8 H103167 Washer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 H135944 Gear 1 X X Z=43
10 H133010 Shift Collar 1 X X
11 CE18505 Bushing 1 X X (A)
H129564 Shift Collar 1 X X (B)
12 H135942 Gear 1 X X Z=32
H143408 Gear 1 X X Z=29
CE19099 Gear 1 X Z=33 CIS
13 H176279 Gear 1 X X Z=24
14 26M4228 Shaft Key 1 X X 8 X 28 mm
15 H110539 Orifice 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
16 CE18223 Pinion 1 X X Z=13
17 JD8182 Bearing Cone 1 X X
18 JD8223 Bearing Cup 1 X X
19 H144385 Bearing Cap 1 X X
20 U10746 O-Ring 1 X X
21 H129558 Snap Ring 1 X X

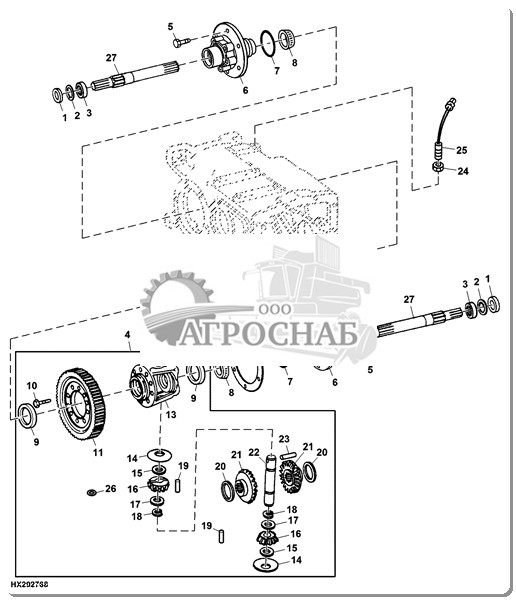

Transmission Differential Gears and Shafts

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AT40603 Seal 2 X X
2 C3936E Ring 2 X X
3 JD7502 Cylindrical Roller Bearing 2 X X
4 DE21114 Axle With Differential 1
5 19M7844 Screw 12 X X M16 X 45
6 H130407 Brake Disk 2 X X
7 R27796 O-Ring 2 X X
8 JD8147 Bearing Cone 2 X X
9 JD7425 Bearing Cup 2 X X
10 19M7985 Screw 14 M12 X 35
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
R308123 Cap Screw 14
11 CE19116 Gear 1 X X SUB FOR CE18224
CE19097 Gear 1 X Z = 62, SUB FOR CE18455
CE21997 Gear 1 Z = 60
12 H126572 Shim AR X X TK = 0.076 mm
H126573 Shim AR X X TK = 0.127 mm
H126575 Shim AR X X TK = 0.508 mm
13 N197422 Housing 1
CE21998 Housing 1
14 H133202 Thrust Washer 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
15 R70112 Thrust Washer 2 X X
16 Z12964 Pinion 2
CE20835 Pinion 2
17 R70113 Thrust Washer 2 X X
18 YZ120471 Ring 2 X X (SUB FOR (2) R70114)
19 R70115 Needle Roller 52 X X
20 H164794 Washer 2 X X
21 H92308 Gear 2
CE20836 Gear 2 Z = 20
22 H146646 Pin 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
23 34M7073 Spring Pin 1 X X 10 X 65 mm
24 14H904 Nut 1 X X 3/4"
25 AH116104 Sensor 1 X X (A)
26 R135543 Washer 14
27 H165508 Shaft 2

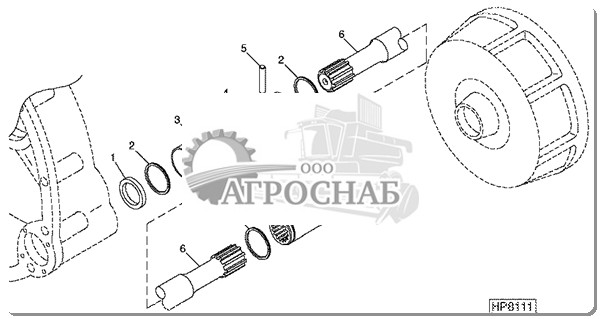

Drive Shaft, Final Drive

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH128391 Seal 1 X X
2 H133229 Snap Ring 3 X X
3 H134444 Sleeve 1 X X
4 HXE30611 Splined Coupling 2 X X MARKED H165510
5 H131754 Pin 2 X X
6 H165665 Shaft 1 X X RH
H165666 Shaft 1 X X LH
7 H166201 Sleeve 1 X X

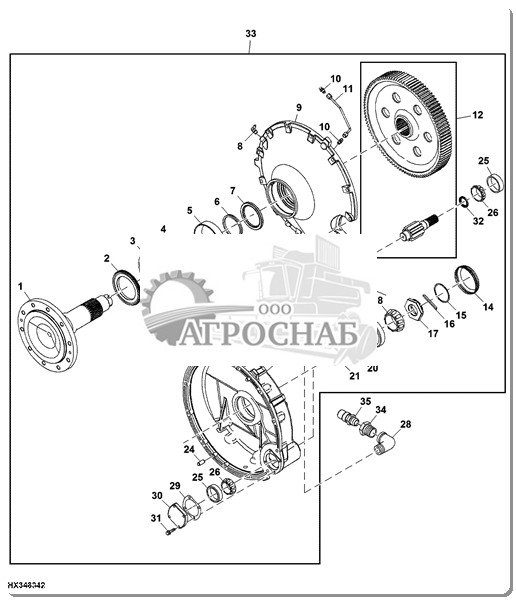

Final Drive, Single Reduction

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H201791 Spindle 1 X X
2 AH112401 Seal 1 X X
3 R90080 Oil Cup 1 X X
4 AN372757 Tapered Roller Bearing 1 X X SUB FOR JD10134
5 N380472 Bearing Cup 1 X X SUB FOR JD10135
6 H161871 V-Ring Seal 1 X X
7 AH155232 V-Ring Seal 1 X X
8 JD7760 Lubrication Fitting 1 X X
9 H163694 Housing 1 X X
10 R35352 Fitting 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH156971 Line 1 X X
12 DE31426 Gear Kit 1 X X SUB FOR H167723 AND H167722
13 19M7824 Screw 12 X X M16 X 60
14 H154720 Cap 1 X X
15 H22784 Snap Ring 1 X X
16 H125330 Shaft Key 1 X X
17 H129854 Nut 1 X X
18 JD10266 Bearing Cone 1 X X ORDER AXE63131
19 JD7298 Bearing Cup 1 X X ORDER AXE63131
20 H129557 Spacer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 H118882 Snap Ring 1 X X
22 15H584 Pipe Plug AR X X 1/2"
23 H163692 Housing 1 X X RH USE WITH AH205894
H225885 Housing 1 X X RH, (USE WITH AH224518)
H163693 Housing 1 X X LH USE WITH AH205893
H225886 Housing 1 X X LH; USE WITH AH224517
H167970 Housing 1 X X (A) RH
H167971 Housing 1 X X (A) LH
24 R54380 Dowel Pin 2 X X
25 JD7278 Bearing Cup 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
26 JD7228 Bearing Cone 2 X X
27 15H638 Pipe Plug 1 X X 1/8"
28 15H602 Elbow Fitting 1 X X 1/2"
29 H161541 Shim 2 X X TK = 0.5 mm
H161542 Shim 1 X X TK = 0.25 mm
H161543 Shim 2 X X TK = 0.13 mm
H163745 Shim 2 X X TK = 0.076 mm
30 H161540 Cap 1 X X
31 19M7835 Screw 4 X X M10 X 35
32 AH128391 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
33 AH205894 Drive 1 X X (B) RH
DE31747 Drive 1 (C) RH, SUB FOR AH224518
AH205893 Drive 1 X X (B) LH
DE31746 Drive 1 (C) LH, SUB FOR AH224517
DE31391 Drive 1 X X (A) LH, SUB FOR AH203994
DE31392 Drive 1 X X (A) RH, SUB FOR AH203995
34 15H514 Pipe Bushing 1 X X 1/8"
35 JD5801 Pressure Relief Fitting 1 X X
36 AXE63131 Bearing Kit 1 X X

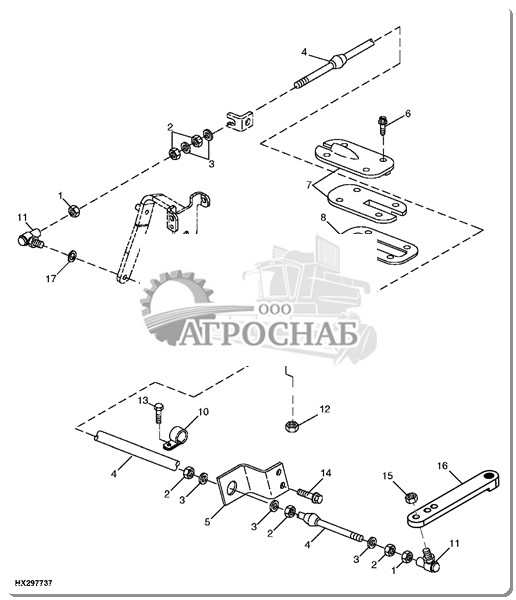

Hydrostatic Drive Control Cable

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 14M7272 Nut 2 X X M6
2 14M7260 Nut 5 X X M16
3 24M7241 Washer 5 X X 17 X 34 X 4 mm
4 AH147263 Push Pull Cable 1 X X
5 H142045 Support 1 X X
6 37M7131 Screw 4 X X M6 X 20
7 H126124 Clamp 2 X X
8 H126123 Gasket 1 X X
H207518 Gasket 1 X X (A)
9 19M7868 Screw 1 X X M8 X 30
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 AH80916 Clip 3 X X
11 AH208684 Ball Joint 2 X X
12 14M7298 Flange Nut 1 X X M8
13 37M7058 Screw 1 X X M8 X 20
14 19M7867 Screw 2 X X M8 X 25
15 H168961 Lock Nut 1 X X M6
16 H168988 Lever 1 X X
17 T32255 Shim 1 X X TK = 0.016 mm

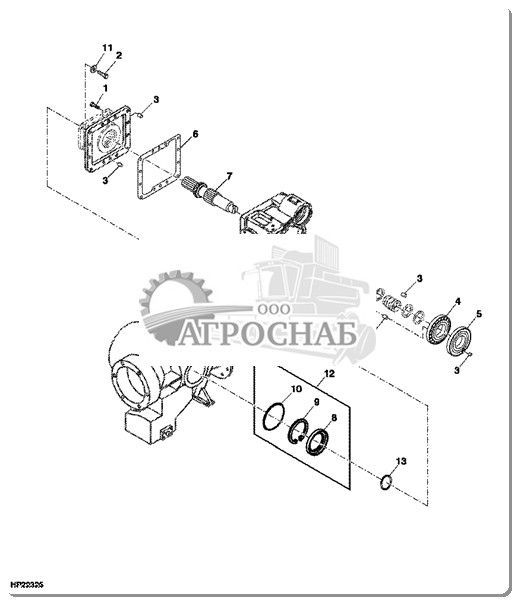

Hydrostatic Drive Pump, Front Cover And Shaft

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19H1821 Cap Screw 12 X X 7/16" X 1-1/4"
2 19M7493 Cap Screw 4 X X M12 X 40
3 H63271 Pin 5 X X
4 H135700 Plate 1 X X
5 H138900 Plate 1 X X
6 H214789 Gasket 1 X X (SUB FOR H115060)
7 AZ56794 Drive Shaft 1 X X
8 AZ56795 Seal 1 X X
9 T187712 Snap Ring 1 X X
10 R63308 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 T29342 Washer 4 X X
12 AE70192 Seal Kit 1 X X
13 T19832 O-Ring 1 X X
.. AXE10219 Pump 1 X X
.. PG200760 Hydraulic Pump Reman 1 X X (A) (SUB FOR AH204384 OR AH218 595 OR AH221230 (REMAN FOR AXE10 219)) ( PG200761 ALSO AVAILABLE)
.. AXE14670 Hydraulic Pump 1 X X (B) (SUB FOR AH163144)
.. AXE10220 Pump 1 X X (C) (SUB FOR AH217868 OR AH217795 OR AH222647)
.. PG201015 Hydraulic Pump Reman 1 X X REMAN FOR AXE10220
.. AH221225 Pump 1 X X (D) (REMAN FOR AH212134)

Hydrostatic Drive Pump, Housing, Swashplate, and Servo Cylinders

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 N126603 Pin Fastener 1 X X
2 M48000 Snap Ring 2 X X
3 AH131392 Plate Kit 1 X X
4 AN129278 Orifice 1 X X
5 H135215 Holder 1 X X
6 R26906 O-Ring AR X X
7 AN274375 Pin Fastener 2 X X
8 AZ49846 Cap 1 X (CIS)
9 JD9076 Bearing Cone 2 X X
JD9133 Bearing Cup 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 N126600 Link 2 X X
11 H135211 Compression Spring 1 X X
12 H135695 Needle Roller 1 X X
13 AH112680 Shim 1 X X SIX, .002", FOUR, .005" , .010", .015" AND .025"
14 M4237T O-Ring 2 X X
15 H135212 Needle Roller 1 X X
16 19H2666 Cap Screw 6 X X 7/16" X 7/8"
17 H63271 Pin 2 X X
18 N376359 Gasket 1 X X 75CC HYDRO, (SUB FOR N126584)
H214563 Gasket 1 X X 105CC HYDRO, (SUB FOR H115049)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 R30903 O-Ring 4 X X
20 R152879 O-Ring 2 X X (SUB FOR 32246)
21 W23690 Back-Up Ring 2 X X
22 AN122502 Check Valve 2 X X
23 19H2347 Cap Screw 6 X X 7/16" X 3"
24 19H3352 Screw 4 X X 5/16" X 1-1/4"
25 19H1899 Cap Screw 2 X X 7/16" X 2"
26 19H3176 Screw 6 X X 0.164" X 0.380"
27 H115052 Retainer 2 X X
28 AH112668 Sleeve 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28A AZ42198 Sleeve 1 X X
29 AH112675 Piston 2 X X (INCLUDES AN274375)
30 P48403 O-Ring 2 X X
31 M4237T O-Ring 2 X X
32 AN122518 Fitting Plug 1 X X
33 R51031 Fitting 1 X X
34 AH65358 Bearing 1 X X
35 AH112678 Shim 1 X X SIX, .003", .005", .010" , .015", .020" AND .030"
36 R28782 O-Ring 2 X X
37 H135213 Washer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
38 H135214 Valve Spool 1 X X
39 N126644 Orifice 1 X X
40 AZ44859 Strap 1 X (CIS)
41 H229135 Link 1 X X
.. AXE10219 Pump 1 X X
.. PG200760 Hydraulic Pump Reman 1 X X (A) (SUB FOR AH204384 OR AH218 595 OR AH221230 (REMAN FOR AXE10 219)) ( PG200761 ALSO AVAILABLE)
.. AXE14670 Hydraulic Pump 1 X X (B) (SUB FOR AH163144)
.. AXE10220 Pump 1 X X (C) (SUB FOR AH217868 OR AH217795 OR AH222647)
.. PG201015 Hydraulic Pump Reman 1 X X REMAN PART FOR AXE10220
.. AH221225 Pump 1 X X (D) (REMAN FOR AH212134)

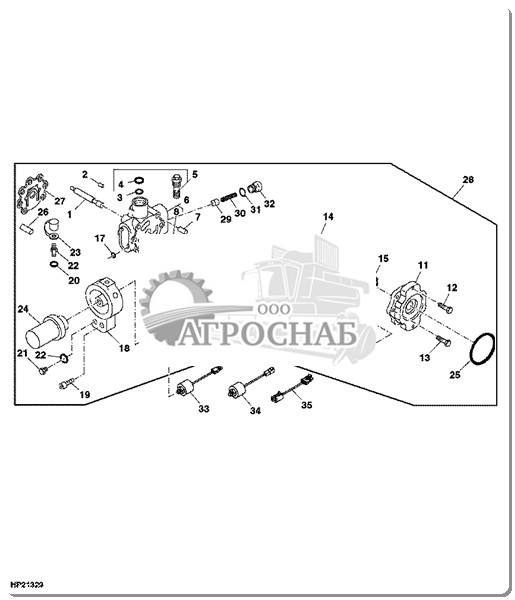

Hydrostatic Drive Charge Pump

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 ...... Drive Shaft 1 X X
2 H135706 Pin 1 X X
3 H63289 O-Ring 1 X X
4 U17409 O-Ring 1 X X
5 AN122498 Pressure Relief Valve 1 X X
6 ...... Housing 1 X X
7 ...... Dowel Pin 2 X X
8 ...... Needle Bearing 1 X X
9 H135570 O-Ring 2 X X
10 ...... Spacer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 ...... Cover 1 X X
12 19H1875 Cap Screw 2 X X 5/16" X 1-3/4"
13 19H4009 Socket Head Screw 4 X X 5/16" X 3-3/4"
14 ...... Oil Pump 1 X X
15 ...... Ball Bearing 1 X X
16 ...... Snap Ring 2 X X
17 P48347 O-Ring 2 X X
18 H171116 Filter Head 1 X X
19 19H3111 Screw 2 X X 3/8" X 1.380"
20 R26448 O-Ring 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 R27218 Fitting Plug 1 X X
22 AH125760 Hyd. Quick-Connect Coupler 1 X X
23 R77175 Cover 1 X X
24 AH128449 Hydraulic Filter 1 X X
25 E65288 O-Ring 1 X X
26 H63271 Pin 2 X X
27 H214962 Gasket 1 X X (SUB FOR H135497)
28 AXE14670 Hydraulic Pump 1 X X (SUB FOR AH163144)
29 ...... Poppet 1 X X
30 ...... Spring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 U12547 O-Ring 1 X X
32 ...... Plug 1 X X
33 AH128929 Switch 1 - 725009
34 AH224451 Switch 1 725100 -
35 AH228608 Wiring Harness 1 725100 -

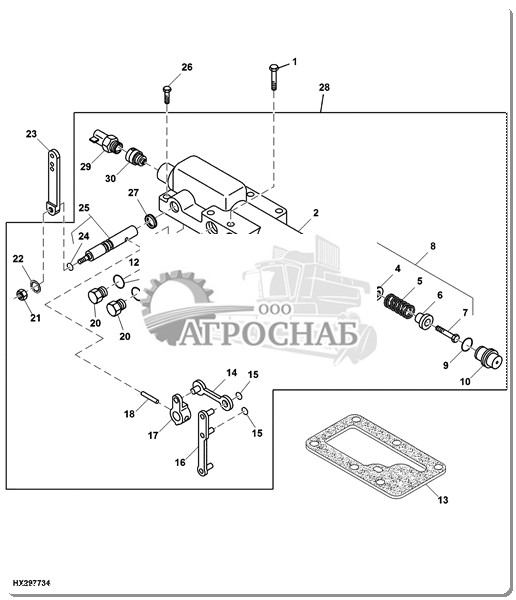

Hydrostatic Drive Displacement Control Valve

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19H1875 Cap Screw 2 X X 5/16" X 1-3/4"
2 ...... Housing 1 X X
3 ...... Spool 1 X X
4 ...... Washer 1 X X
5 ...... Spring 1 X X
6 ...... Retainer 1 X X
7 ...... Cap Screw 1 X X
8 AH129284 Spool Kit 1 X X (A)
9 R27166 O-Ring 1 X X
10 N126641 Screw 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AN122494 Bolt 1 X X
12 AN122499 Bolt 1 X X
13 N376361 Gasket 1 X X (SUB FOR N126586)
14 ...... Link 1 X X
15 M48000 Snap Ring 2 X X
16 ...... Link 1 X X
17 ...... Connector 1 X X
18 34H311 Spring Pin 1 X X 1/4" X 7/8"
19 R26448 O-Ring 2 X X
20 R27218 Fitting Plug 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 14H785 Nut 1 X X 5/16"
22 12M7032 Lock Washer 1 X X 8.400 mm
23 H168988 Lever 1 X X
24 A3917R O-Ring 1 X X
25 AN193084 Shaft 1 X X
26 19H1905 Cap Screw 4 X X 5/16" X 1"
27 H136163 Seal 1 X X
28 AH232683 Control Valve 1 X X (SUB FOR AH221085)
29 AH218207 Switch 1 X X (B)
30 AH221422 Adapter Fitting 1 X X

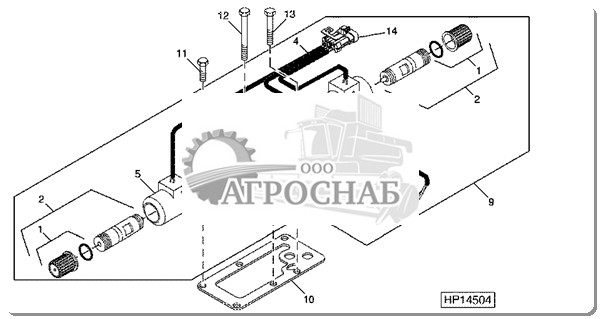

Hydrostatic Drive Displacement Control Valve (Auto Feedrate) ( - 711153)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH214887 Coil Kit 2 X X (A)
2 AH214153 Valve Kit 2 X X (B)
3 57M7796 Elec. Connector Housing 1 X X
R104701 Elec. Connector Terminal 3 X X
4 AH215102 Wiring Harness 1 X X
5 H215580 Solenoid Valve Coil 2 X X
6 RE154966 Pressure Sensor 1 X X
7 R26448 O-Ring 2 X X
8 R27218 Fitting Plug 1 X X
9 AH222653 Control Valve 1 X X (SUB FOR AH207407)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 N376361 Gasket 1 X X (SUB FOR N126586)
11 19H1905 Cap Screw 3 X X 5/16" X 1"
12 19H1907 Cap Screw 2 X X 5/16" X 2-3/4"
13 19H1913 Cap Screw 1 X X 5/16" X 2-1/4"
14 57M7264 Elec. Connector Housing 1 X X
57M8631 Elec. Connector Accessory 1 X X
R104919 Elec. Connector Terminal 7 X X
57M7258 Elec. Connector Seal 7 X X
57M8632 Clamp 1 X X
57M7259 Elec. Connector Seal 1 X X

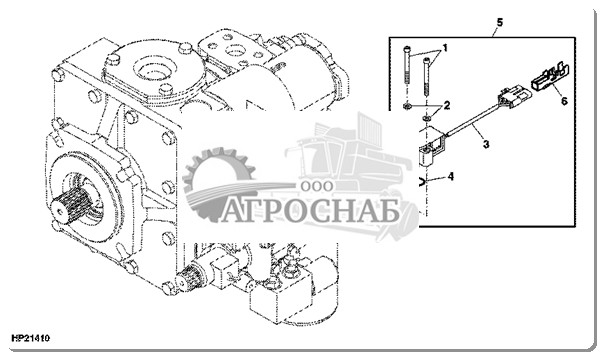

Hydrostatic Drive Displacement Control Valve Position Sensor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19H3977 Socket Head Screw 2 X X 0.164" X 1-1/4"
2 24H1943 Washer 2 X X 3/16" X 3/8" X 0.040"
3 ...... Sensor 1 X X
4 R73599 O-Ring 1 X X
5 AH222833 Sensor Kit 1 X X
6 R104701 Elec. Connector Terminal 3 X X

Hydrostatic Drive Displacement Control Valve (Auto Feedrate) (711154 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19H1905 Cap Screw 3 X X 5/16" X 1"
2 19H1907 Cap Screw 2 X X 5/16" X 2-3/4"
3 19H1913 Cap Screw 1 X X 5/16" X 2-1/4"
4 57M7264 Elec. Connector Housing 1 X X
57M8631 Elec. Connector Accessory 1 X X
R104919 Elec. Connector Terminal 7 X X
57M7258 Elec. Connector Seal 7 X X

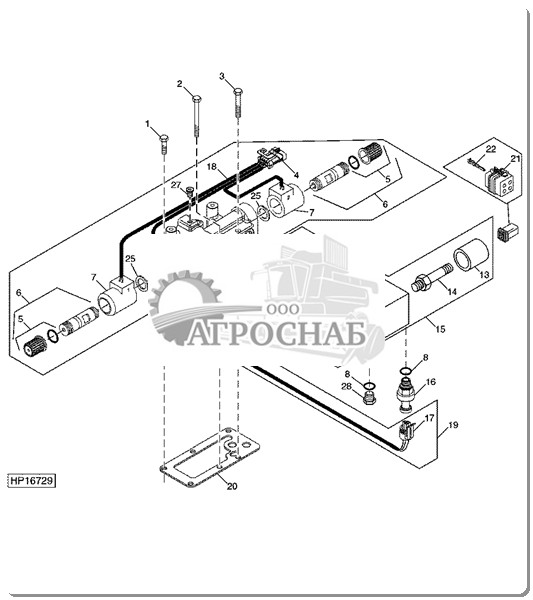

57M8632 Clamp 1 X X
5 AH214887 Coil Kit 2 X X
6 AH214153 Valve Kit 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
7 H215580 Solenoid Valve Coil 2 X X
8 51M7041 O-Ring 4 X X 11.300 X 2.200 mm
9 38H5002 Adapter Fitting 2 X X
10 T77613 O-Ring 2 X X
11 38H1067 Adapter Fitting 2 X X
12 R26448 O-Ring 2 X X
13 AH217866 Solenoid Valve Coil 1 X X
14 AE73079 Solenoid Valve 1 X X
15 AH218057 Solenoid Valve 1 X X
16 RE154966 Pressure Sensor 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
17 57M7796 Elec. Connector Housing 1 X X
R104701 Elec. Connector Terminal 3 X X
18 AH215102 Wiring Harness 1 X X
19 AH222653 Control Valve 1 X X (SUB FOR AH207407)
20 H224139 Gasket 1 X X
21 57M7534 Elec. Connector Housing 1 X X
22 57M7620 Electrical Connector Assy 1 X X
23 AH222960 Screen 2 X X
24 AH222964 Fitting Plug 1 X X
25 H224550 Gasket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
26 H229135 Link 1 X X
27 R108038 Drain Plug 1 X X
28 15M7076 Drain Plug 1 X X

Hydrostatic Drive Motor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AZ51528 Piston 9 X X
2 H63271 Pin 5 X X
3 H135700 Plate 1 X X
4 AZ51527 Piston 1 X X
5 H138901 Plate 1 X X
6 H135702 Gasket 1 X X
7 AH65358 Bearing 1 X X
8 AH112678 Shim 1 X X SIX, .003", .005", .010" , .015", .020" AND .030"
9 R77175 Cover 2 X X
10 AH125760 Hyd. Quick-Connect Coupler 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 R26448 O-Ring 2 X X
12 19H2347 Cap Screw 6 X X 7/16" X 3"
13 T187712 Snap Ring 1 X X
14 19H1899 Cap Screw 2 X X 7/16" X 2"
15 19H3352 Screw 4 X X 5/16" X 1-1/4"
16 AH131392 Plate Kit 1 X X (A)
17 AZ56795 Seal 1 X X
18 AZ56818 Drive Shaft 1 X X
19 JD7297 Bearing Cup 1 X X
20 N196034 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 H135571 Sealing Washer 2 X X
22 19H3192 Screw 2 X X 5/16" X 3"
23 U12547 O-Ring 1 X X
24 H64813 Dowel Pin 1 X X
25 15H558 Pipe Plug 1 X X 1/8"
26 R27175 Drain Plug 1 X X
27 R112857 O-Ring 1 X X
28 U15415 O-Ring 1 X X
29 N191174 Compression Spring 1 X X
.. AH169693 Motor 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
.. AH204424 Hydraulic Motor Reman 1 X X (B) 105CC, 3250RPM, (REMAN FOR AH169693)
.. AN272356 Seal Kit 1 X X

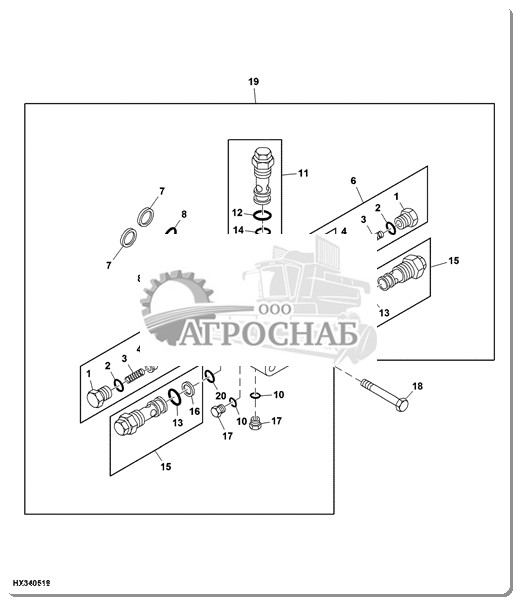

Hydrostatic Motor Valve

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 R27175 Drain Plug 2 X X
2 R26906 O-Ring 2 X X
3 ...... Spring 2 X X
4 N126654 Valve 2 X X
5 N128541 Spool 1 X X
6 AH131308 Valve Kit 1 X X (A)
7 U40729 Back-Up Ring 2 X X
8 N130510 O-Ring 2 X X
9 AN272356 Seal 1 X X
10 R28782 O-Ring 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AN122497 Pressure Relief Valve 1 X X
12 U17409 O-Ring 1 X X
13 U15192 O-Ring 2 X X
14 H63289 O-Ring 1 X X
15 AZ51504 Pressure Relief Valve 2 X X
16 U17402 Washer 2 X X
17 R51031 Fitting 3 X X
18 19H2228 Cap Screw 4 X X 3/8" X 4"
19 AH141811 Flow Control Hyd. Valve 1 X X
20 U12547 O-Ring 3 X X

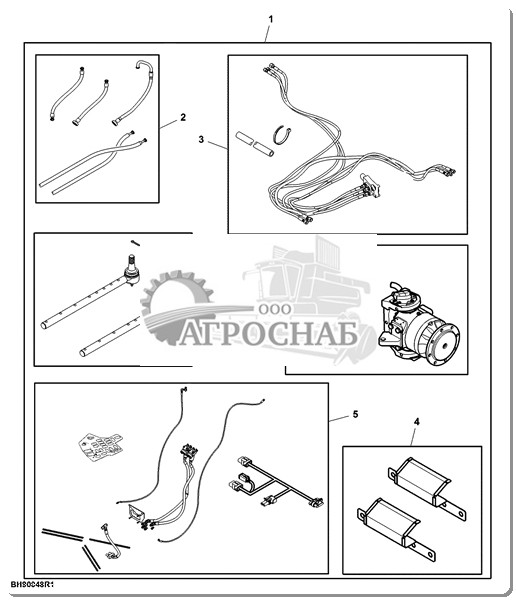

Four Wheel Drive Conversion, Attachment

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BH90048 Attach.-Bundle Identifier 1 INCLUDES (2) BH81676, (2) BH81886, B H81891, BH81961, BH84309 AND BH84361
2 BH81676 Hose Kit 1
3 BH81886 Valve Kit 1
4 BH81891 Shield Kit 1
5 BH81961 Harness Kit 1
6 AH229183 Tie Rod Assembly 1 SUB FOR BH84309
7 AXE59852 Drive Kit 1 SUB FOR BH84361 OR BH84451 APPL

Two-Speed Motor

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AXE13854 Hydraulic Motor 1 X X LH, (SUB FOR AH210373 OR AH218390)
PG200937 Hydraulic Motor Reman 1 X X (REMAN FOR AH218390)
AH218391 Hydraulic Motor 1 X X (SUB FOR AH210374) RH
PG200938 Hydraulic Motor Reman 1 X X (REMAN FOR AH218391)

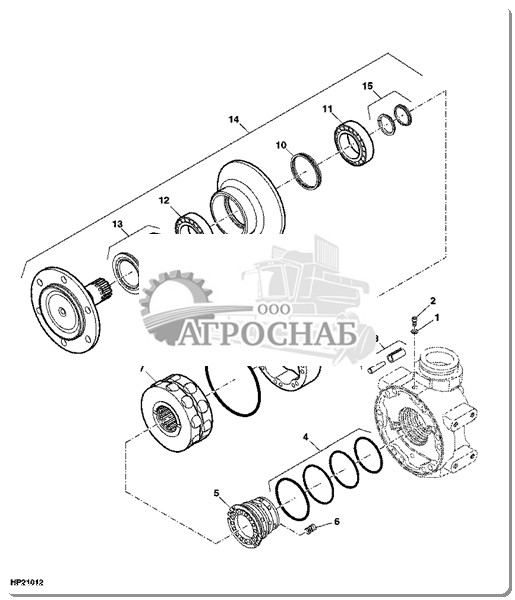

Two-Speed Inner Cover, Manifold and Packing

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H175443 Washer 1 X X
2 R91842 Screw 1 X X
3 AH169196 Pin 2 X X
4 AH169193 Seal Kit 1 X X
5 H175440 Valve 1 X X
6 H175442 Compression Spring 9 X X
7 AXE47208 Cylinder Block 1 X X SUB FOR AH169192
8 H175438 O-Ring 2 X X
9 AH169191 Cam 1 X X 1886CC, (USE WITH AXE13854, A H218391, AH223532 OR AH223533)
AH229601 Cam 1 X X 2096CC, (USE WITH AH229596 OR AH229598)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 AH219804 Seal 1 X X 2096CC, (USE WITH AXE13854 OR AH218391)
11 AH169190 Cylindrical Roller Bearing 1 X X
12 AH211004 Cylindrical Roller Bearing 1 X X
13 AH219805 Seal Kit 1 X X (SUB FOR AH213283)
14 AH218392 Spindle 1 X X (SUB FOR AH211002)
15 AH212365 Ring 1 X X

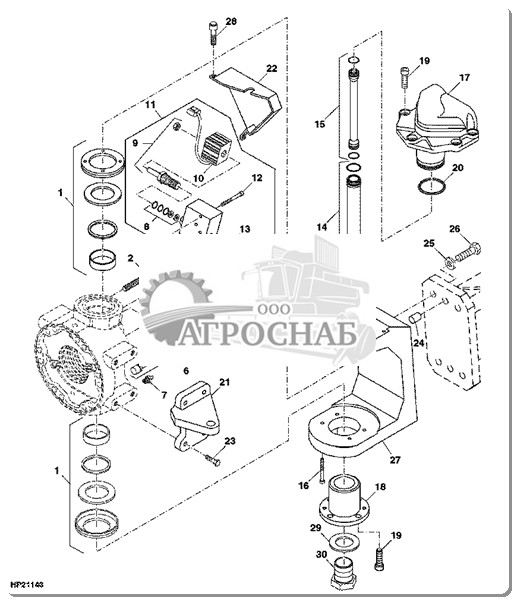

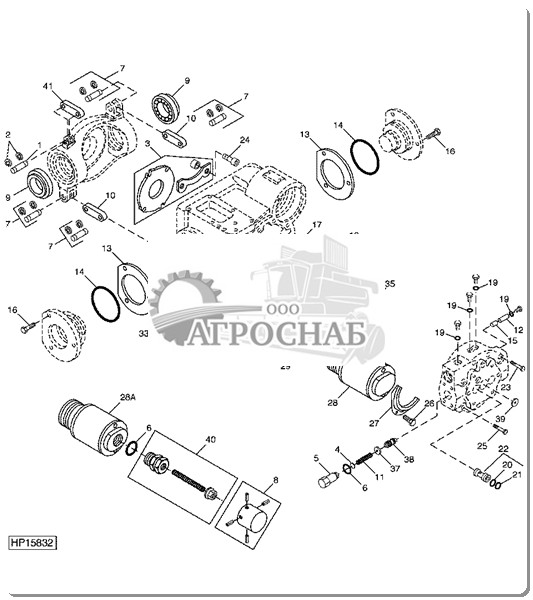

Two-Speed C- Frame, Pivots And Caps-Motor 2096cc

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AXE12312 Bushing Kit 2 X X (SUB FOR AH169199)
2 H175439 Screw 6 X X
3 H175441 Screw 4 X X
4 T77613 O-Ring 4 X X
5 AH169194 Plug 1 X X
6 AH169195 Valve Spool 1 X X
7 JD7806 Lubrication Fitting 2 X X
8 AH209121 Seal Kit 1 X X
9 AH209120 Valve 1 X X (SUB FOR AH169204)
10 AH169203 Electrical Coil 1 X X (USE WITH AH210373 OR AH210374)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH219822 Electrical Coil 1 X X (USE WITH AXE13854 OR AH218391)
11 AH219807 Valve 1 X X (SUB FOR AH173807)
12 19M8513 Screw 4 X X M6 X 40
13 64M1018 Drain Plug 1 X X SUB FOR AH169205
14 AH169200 Oil Tube 1 X X
15 AH169201 Oil Tube 1 X X
16 19M8532 Screw 8 X X M6 X 35
17 HXE18590 Pivot 1 X X (A)
18 HXE18195 Pivot 1 X X (B)
HXE18196 Pivot 1 X X (C)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 19M8440 Screw 9 X X M10 X 25
20 H175444 Seal 1 X X 1886CC
AXE12311 Seal 1 X X 2096CC
21 H227051 Steering Arm 1 X X (D) (SUB FOR H169431)
H227050 Steering Arm 1 X X (E) (SUB FOR H169430)
22 H175446 Valve Cover 1 X X
23 19M7946 Cap Screw 4 X X M20 X 40
24 H75423 Pin Fastener 2 X X
25 H174025 Spacer 5 - 705797
H210869 Spacer 5 705798 -
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
26 19M9293 Cap Screw 5 - 705797
19M9338 Cap Screw 5 705798 -
27 HXE14302 Yoke 2 X X (F) (SUB FOR H211268)
28 19M9492 Screw 2 X X M8 X 12
29 24H1452 Washer 1 X X (G) 1-1/32" X 1-3/4" X 0.105"
30 N375572 Bolt 1 X X (G)

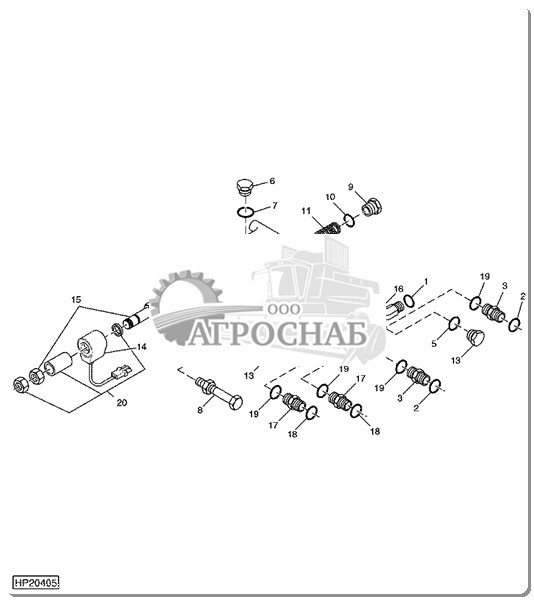

Control Valve, 4WD On/Off

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T77613 O-Ring 1 X X
2 T77858 O-Ring 2 X X
3 38H1163 Adapter Fitting 2 X X
4 AH218798 Control Valve 1 X X (SUB FOR AH128672) (INCL A)
5 R28782 O-Ring 2 X X (A)
6 R27218 Fitting Plug 1 X X (A)
7 R26448 O-Ring 2 X X (A)
8 19M7801 Screw 3 X X M8 X 60
14M7298 Flange Nut 3 X X M8
9 AH84695 Fitting 1 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 R31674 O-Ring 1 X X (A)
11 R45182 Compression Spring 1 X X (A)
12 AU40993 Fitting 1 X X (A)
13 R51031 Fitting 2 X X (A)
14 AH128654 Electrical Coil 1 X X (USE WITH AH128672)
AT147011 Solenoid 1 X X (USE WITH AH218798)
15 AH130949 Solenoid Valve 1 X X (USE WITH AH128672)
AT190404 Solenoid Hydraulic Valve 1 X X (USE WITH AH218798)
16 38H1045 Elbow Fitting 1 X X
17 38H1329 Adapter Fitting 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 T77932 O-Ring 2 X X
19 U12547 O-Ring 4 X X
20 AT139434 Housing Kit 1 X X COIL HOUSING

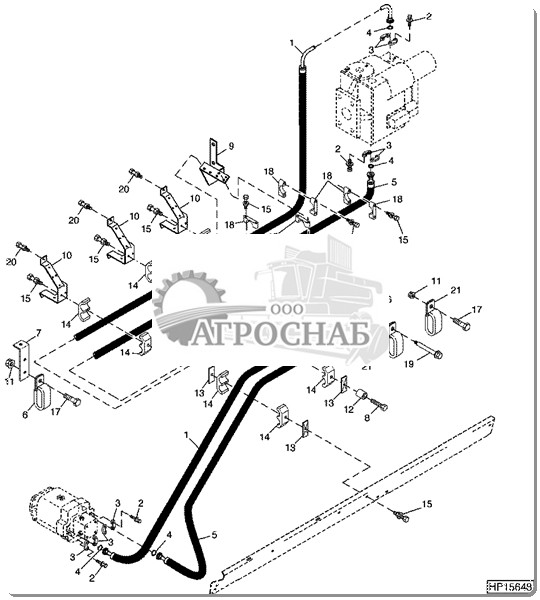

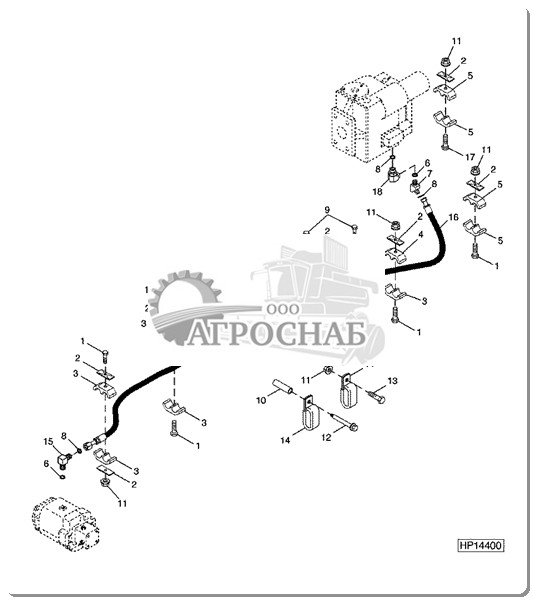

Hydrostatic Drive Hoses (Two Wheel Drive)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH149615 Hydraulic Hose 1 X X LGTH = 6020 mm
2 19H1740 Cap Screw 16 X X 7/16" X 1-3/4"
12H293 Lock Washer 16 X X 7/16"
3 H122182 Flange Fitting 8 X X
4 T78313 O-Ring 4 X X
5 AH149614 Hydraulic Hose 1 X X LGTH = 5400 mm
6 AH80328 Clip 1 X X
7 H171513 Angle 1 X X
8 19M7873 Screw 1 X X M8 X 110
9 H168505 Bracket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 H166750 Bracket 3 X X
11 14M7298 Flange Nut 5 X X M8
12 R117879 Bushing 1 X X 30MM
13 H114901 Plate 7 X X
14 H150222 Hose Clamp 10 X X
15 19M7913 Screw AR X X M8 X 90
14M7298 Flange Nut AR X X M8
16 28H3402 Spacer 1 X X 0.493" X 0.675" X 2"
17 19M7868 Screw 3 X X M8 X 30
18 H150223 Hose Clamp 8 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 H171255 Screw 1 X X
20 19M7784 Screw 3 X X M10 X 20
14M7296 Flange Nut 3 X X M10
21 H168854 Clamp 3 X X

Hydrostatic Drive Hoses, Upper (Four Wheel Drive)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH144192 Hydraulic Hose 1 X X LGTH = 1095 mm
2 19H1740 Cap Screw 8 X X
12H293 Lock Washer 8 X X
3 H122182 Flange Fitting 4 X X
4 T78313 O-Ring 4 X X
5 14M7298 Flange Nut 4 X X
6 19M8039 Screw 2 X X
7 H150223 Hose Clamp 4 X X
8 19M7913 Screw 2 X X
9 AH141543 Hydraulic Hose 1 X X LGTH = 815 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 19M8162 Screw 8 X X
.. BH81676 Complete Goods/Ship. Bundle 1 X X (A)

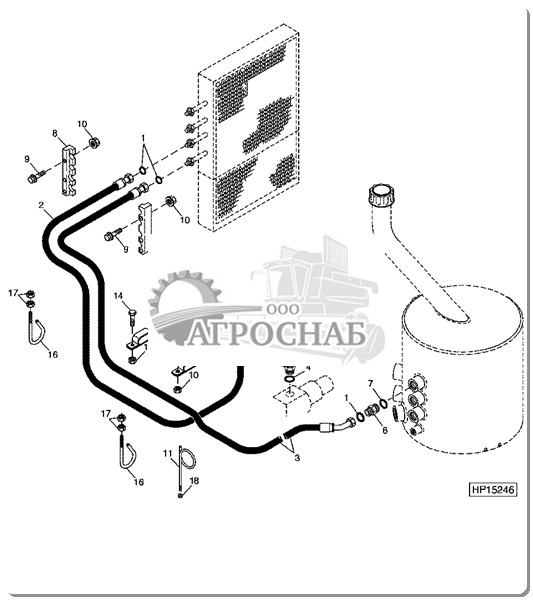

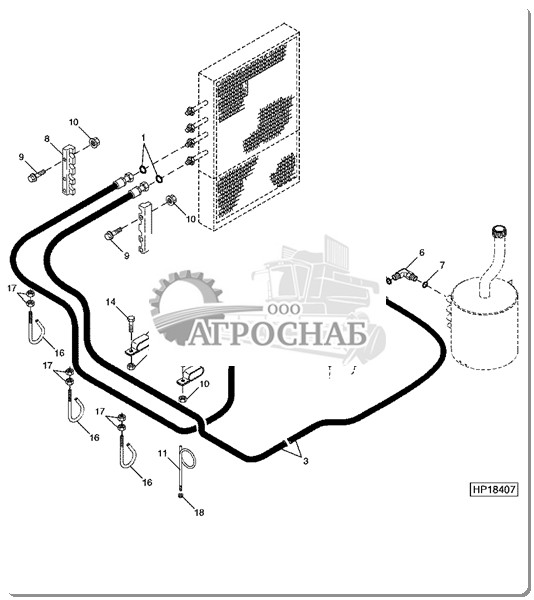

Hydrostatic Oil Cooler Hoses ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T77858 O-Ring 4 X X
2 AH156746 Hydraulic Hose 1 X X LGTH = 4350 mm
3 AH159948 Hydraulic Hose 1 X X LGTH = 5350 mm
4 U12547 O-Ring 1 X X
5 38H1163 Adapter Fitting 1 X X
6 38H1052 Elbow Fitting 1 X X
7 R29936 O-Ring 1 X X
8 H151585 Clamp 2 X X
9 19M8318 Screw 6 X X M8 X 45
10 14M7298 Flange Nut 8 X X M8
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H155777 Support 1 X X
12 AH80328 Clip 1 X X
13 H168854 Clamp 1 X X
14 19M7868 Screw 1 X X M8 X 30
15 19M7866 Screw 1 X X M8 X 20
16 H163603 Hose Support 3 X X
17 14M7296 Flange Nut 6 X X M10
18 14M7291 Flange Nut 1 X X M16

Hydrostatic Oil Cooler Hoses (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T77858 O-Ring 4 X X
2 AH156746 Hydraulic Hose 1 X X LGTH = 4350 mm
3 AH212619 Hydraulic Hose 1 X X LGTH = 5300 mm
4 U12547 O-Ring 1 X X
5 38H1163 Adapter Fitting 1 X X
6 38H1052 Elbow Fitting 1 X X
7 R29936 O-Ring 1 X X
8 H220580 Clamp 2 X X
9 19M8318 Screw 6 X X M8 X 45
10 14M7298 Flange Nut 8 X X M8
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H155777 Support 1 X X
12 AH80328 Clip 1 X X
13 H168854 Clamp 1 X X
14 19M7868 Screw 1 X X M8 X 30
15 19M7866 Screw 1 X X M8 X 20
16 H163603 Hose Support 2 X X
17 14M7296 Flange Nut 4 X X M10
18 14M7291 Flange Nut 1 X X M16

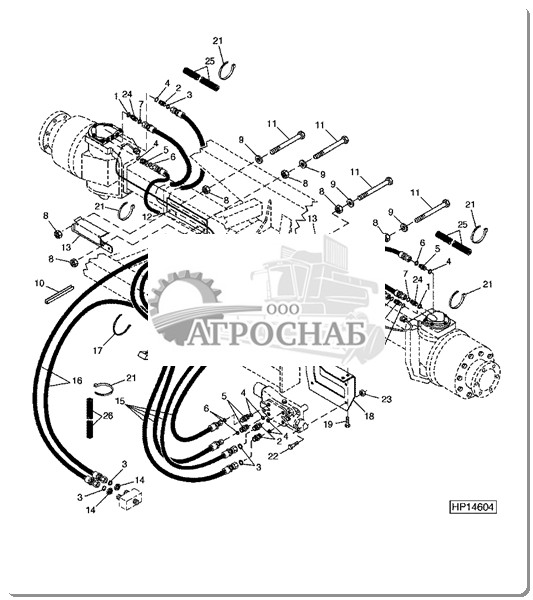

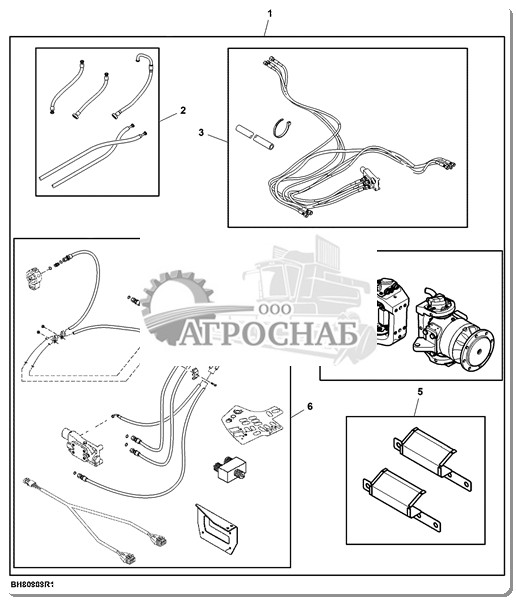

Attachment, Four Wheel Drive Conversion

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BH80989 Attach.-Bundle Identifier 1 INCLUDES BH81676, BH81886, BH84451, BH81891, BH81892
2 BH81676 Hose Kit 1
3 BH81886 Valve Kit 1
4 BH84451 Motor Kit 1
5 BH81891 Shield Kit 1
6 BH81892 Drive Kit 1

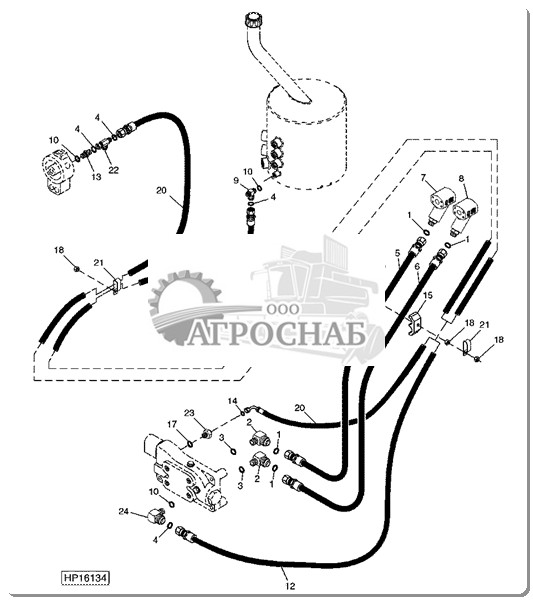

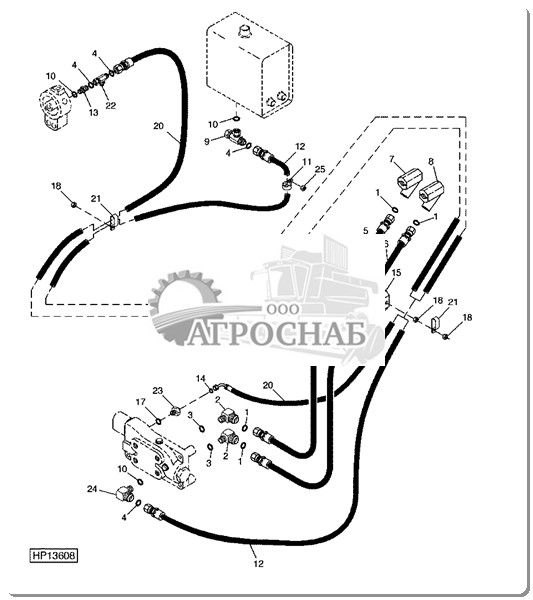

Four-Wheel Drive Hydraulic Hoses, Control Valve ( - 715400)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T77858 O-Ring 4 X X
2 38H1007 Elbow Fitting 2 X X
3 U12547 O-Ring 2 X X
4 T77613 O-Ring 4 X X
5 AH161975 Hydraulic Hose 1 X X LGTH = 1500 mm
6 AH161974 Hydraulic Hose 1 X X LGTH = 1385 mm
7 AH133942 Manifold 1 X X
8 AH133941 Manifold 1 X X
9 38H1016 Tee Fitting 1 X X
10 R26448 O-Ring 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H75541 Clamp 1 X X
12 AH165798 Hydraulic Hose 1 X X LGTH = 3185 mm
13 38H1160 Adapter Fitting 1 X X
14 T77814 O-Ring 1 X X
15 H114898 Clamp 2 X X
16 H114901 Plate 1 X X
17 R28782 O-Ring 1 X X
18 14M7298 Flange Nut 3 X X M8
19 19M8039 Screw 1 X X M8 X 80
20 AH165797 Hydraulic Hose 1 X X LGTH = 2500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 R35668 Clamp 2 X X
22 38H1030 Tee Fitting 1 X X
23 38H1159 Adapter Fitting 1 X X
24 38H1045 Elbow Fitting 1 X X
25 14M7296 Flange Nut 1 X X M10

Four-Wheel Drive Hydraulic Hoses, Control Valve (715401 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 T77858 O-Ring 4 X X
2 38H1007 Elbow Fitting 2 X X
3 U12547 O-Ring 2 X X
4 T77613 O-Ring 4 X X
5 AH161975 Hydraulic Hose 1 X X LGTH = 1500 mm
6 AH161974 Hydraulic Hose 1 X X LGTH = 1385 mm
7 AH133942 Manifold 1 X X
8 AH133941 Manifold 1 X X
9 38H1016 Tee Fitting 1 X X
10 R26448 O-Ring 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H75541 Clamp 1 X X
12 AH212652 Hydraulic Hose 1 X X LGTH = 3185 mm
13 38H1160 Adapter Fitting 1 X X
14 T77814 O-Ring 1 X X
15 H114898 Clamp 2 X X
16 H114901 Plate 1 X X
17 R28782 O-Ring 1 X X
18 14M7298 Flange Nut 3 X X M8
19 19M8039 Screw 1 X X M8 X 80
20 AH165797 Hydraulic Hose 1 X X LGTH = 2500 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 R35668 Clamp 2 X X
22 38H1030 Tee Fitting 1 X X
23 38H1159 Adapter Fitting 1 X X
24 38H1045 Elbow Fitting 1 X X
25 14M7296 Flange Nut 1 X X M10

Two-Speed Four Wheel Drive Hoses

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 R26375 O-Ring 2 X X
2 38H1163 Adapter Fitting 4 X X
3 T77858 O-Ring 6 X X
4 U12547 O-Ring 8 X X
5 38H1329 Adapter Fitting 4 X X
6 T77932 O-Ring 4 X X
7 T77857 O-Ring 2 X X
8 14M7300 Flange Nut 8 X X M20
9 24M7242 Washer 4 X X 21.400 X 42 X 5 mm
10 AH161882 Insulator 3 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H121472 Screw 4 X X
12 H154755 Shield 2 X X
13 H175313 Shield 2 X X
14 T78707 Nut 2 X X
15 AH166046 Hydraulic Hose 4 X X LGTH = 3375 mm
16 AH165355 Hydraulic Hose 2 X X LGTH = 3500 mm
17 N189220 Tie Band 2 X X
18 H178731 Bracket 1 X X
19 19M7784 Screw 2 X X M10 X 20
20 14M7296 Flange Nut 2 X X M10
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 H77698 Tie Band AR X X
22 19M7801 Screw 3 X X M8 X 60
23 14M7298 Flange Nut 3 X X M8
24 38H1161 Adapter Fitting 2 X X
25 H214926 Hose Guard 2 X X
26 H216408 Hose Guard 1 X X

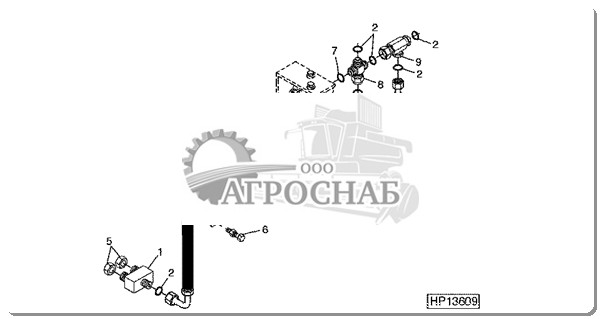

Four-Wheel Drive Case Drain Hydraulic Hoses

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH128692 Manifold 1 X X
2 T77858 O-Ring 6 X X
3 AH153932 Hydraulic Hose 1 X X LGTH = 810 mm
4 AH77884 Clip 1 X X
5 T78707 Nut 2 X X
6 19M7866 Screw 1 X X M8 X 20
14M7298 Flange Nut 1 X X M8
7 R29936 O-Ring 1 X X
8 AH132031 Fitting 1 X X
9 38H1033 Tee Fitting 1 X X

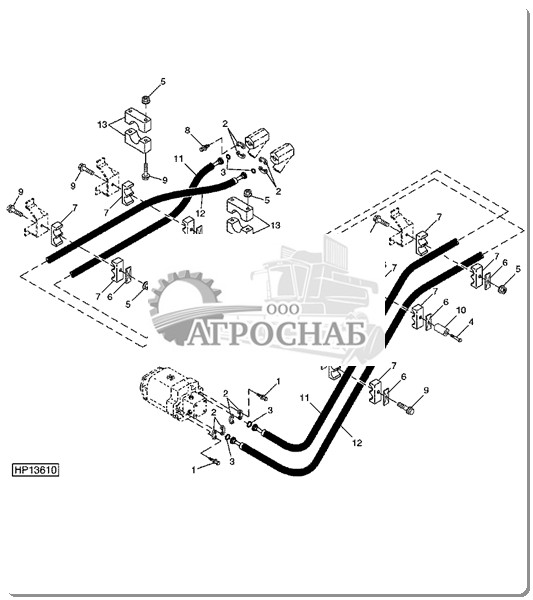

Hydrostatic Drive Hoses, Lower (Four Wheel Drive)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19H1740 Cap Screw 8 X X 7/16" X 1-3/4"
12H293 Lock Washer 8 X X 7/16"
2 H122182 Flange Fitting 8 X X
3 T78313 O-Ring 4 X X
4 19M7873 Screw 1 X X M8 X 110
5 14M7298 Flange Nut 9 X X M8
6 H114901 Plate 7 X X
7 H150222 Hose Clamp 10 X X
8 19M8162 Screw 8 X X M10 X 40
9 19M7913 Screw 8 X X M8 X 90
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 R117879 Bushing 1 X X
11 AH148193 Hydraulic Hose 1 X X LGTH = 4700 mm
12 AH166348 Hydraulic Hose 1 X X LGTH = 4820 mm
13 H150223 Hose Clamp 4 X X
.. BH81676 Complete Goods/Ship. Bundle 1 X X (A)

Hydrostatic Drive Drain Hose

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7803 Screw 4 X X M8 X 70
2 H112567 Plate 8 X X
3 H114897 Clamp 8 X X
4 H159793 Clamp 2 X X
5 H115379 Clamp 4 X X
6 U12547 O-Ring 2 X X
7 38H1048 Elbow Fitting 1 X X
8 T77858 O-Ring 3 X X
9 19M7801 Screw 2 X X M8 X 60
10 28H3402 Spacer 1 X X 0.493" X 0.675" X 2"
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 14M7298 Flange Nut AR X X M8
12 H171255 Screw 1 X X
13 19M7866 Screw 2 X X M8 X 20 (SUB FOR (2) 19M7868)
14 H168854 Clamp 3 X X
15 38H1007 Elbow Fitting 1 X X
16 AH165796 Hydraulic Hose 1 X X
17 19M8039 Screw 2 X X M8 X 80

Final Drive Shaft Shields - (Single Reduction)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH139895 Powershaft Shield 2 X X
AH139896 Powershaft Shield 2 X X 300MM
AH132238 Powershaft Shield 2 X X 400MM
AH203809 Powershaft Shield 2 X X 454MM
AH203808 Powershaft Shield 2 X X 165MM
2 19M7783 Screw 4 X X M10 X 16
3 H147490 Angle 2 X X
H166375 Bracket 2 X X

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?
